Designed and hand-built (by Mario) in Canada.

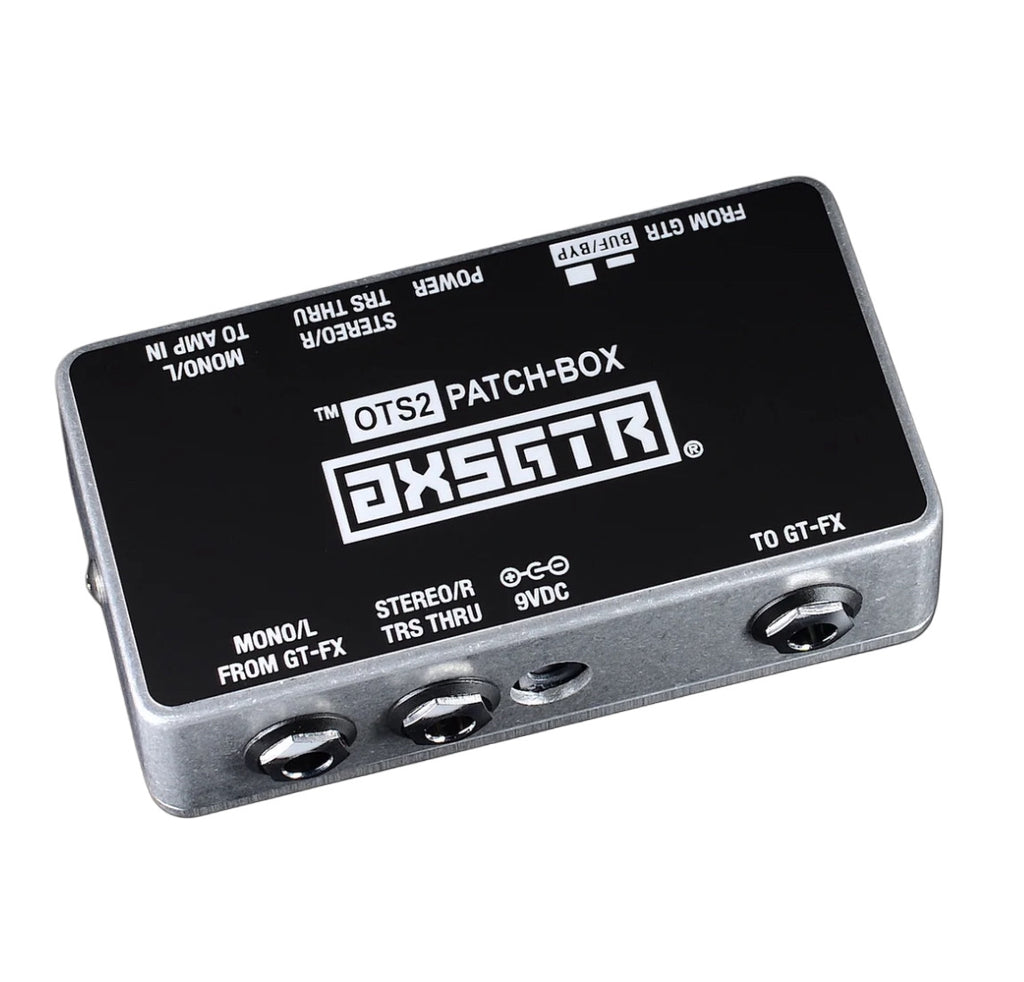

The OTS2™ is a super simple interface for your two cable method [2CM] or stereo guitar rig and pedalboard. It includes a Class-A input buffer for your guitar and a pair of passive ¼" TRS through connections for your effects and back-line amp(s).
The discrete Class-A input buffer that's included for your guitar has an input impedance and other finely tuned characteristics which mimic that of hi-quality tube amp inputs. It will safeguard, strengthen and prepare your guitar’s signal for whatever follows in the signal path.
It presents the guitar with a dynamic and ideal load that remains steadfast, resulting in consistent tone while still allowing the guitar to breathe and feel, as if it were plugged directly into the front of a trusted tube amp.
For the benefits of buffers, see our Buffer FAQ
- Input Buffer
- Input Impedance: 1M ohm
- Output Impedance: 100 ohm
- Housed in a compact 4.43 x 2.38 x 1.22in. (112.5 x 60.5 x 31mm) and rugged Hammond #1590B die-cast aluminum enclosure.
- Powered with 9VDC via a 2.1 x 5.5mm barrel plug with a negative centre pin (like Boss pedals) and the current draw is less than 100mA (adapter not included).
