Designed and hand-built (by Mario) in Canada.

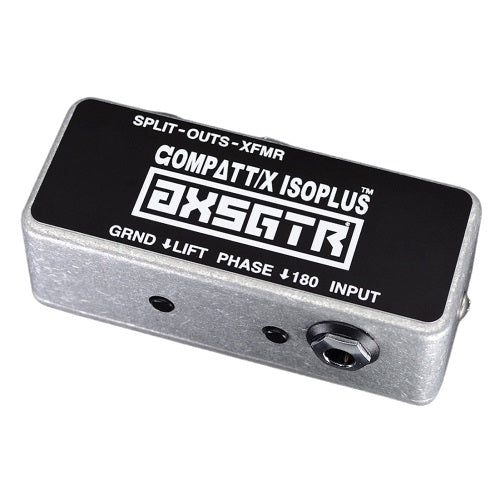

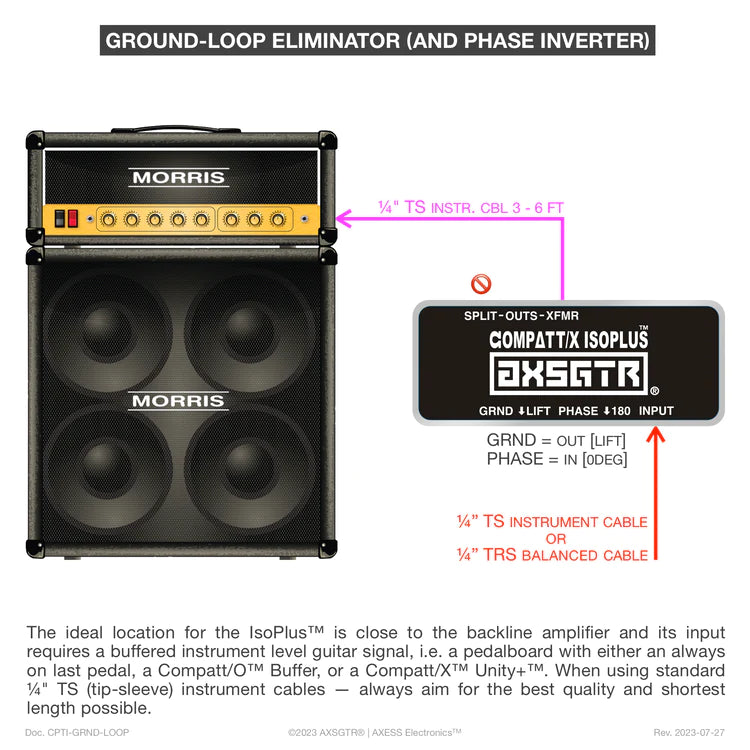

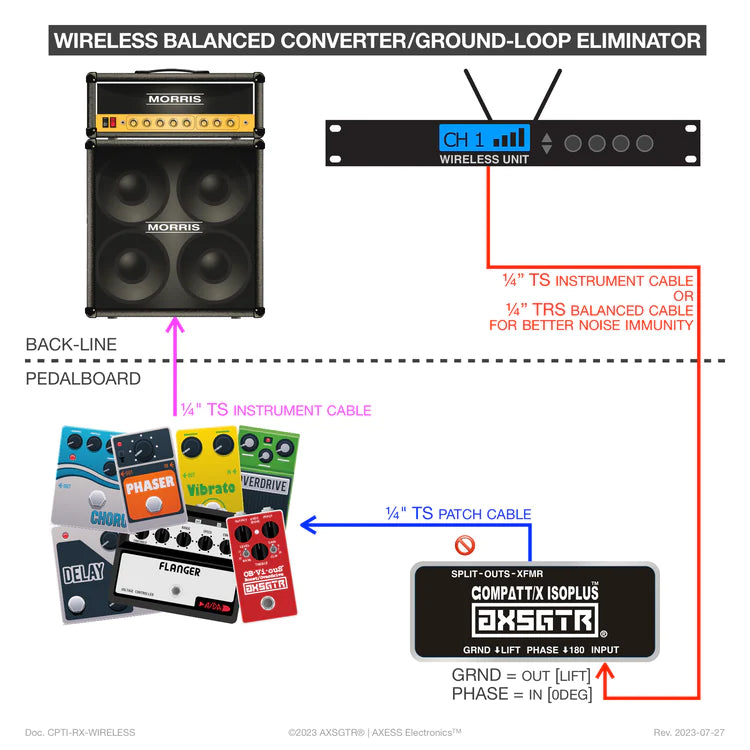

Compatt/X IsoPlus™ is a multi-purpose passive device. Use it as a splitter for 2 or more amps, a ground loop hum and noise eliminator, a signal phase inverter, or as a balanced to unbalanced guitar audio receiver and converter. Affordable, compact, and good enough for Eddie Van Halen‡.
Connect the IsoPlus™ to amps using short standard 1/4" instrument cables. Feed its INPUT with the long cable run from a pedalboard, being driven by either the Compatt/X™ Unity+™, the Compatt/O™ Buffer, or an always on last pedal.

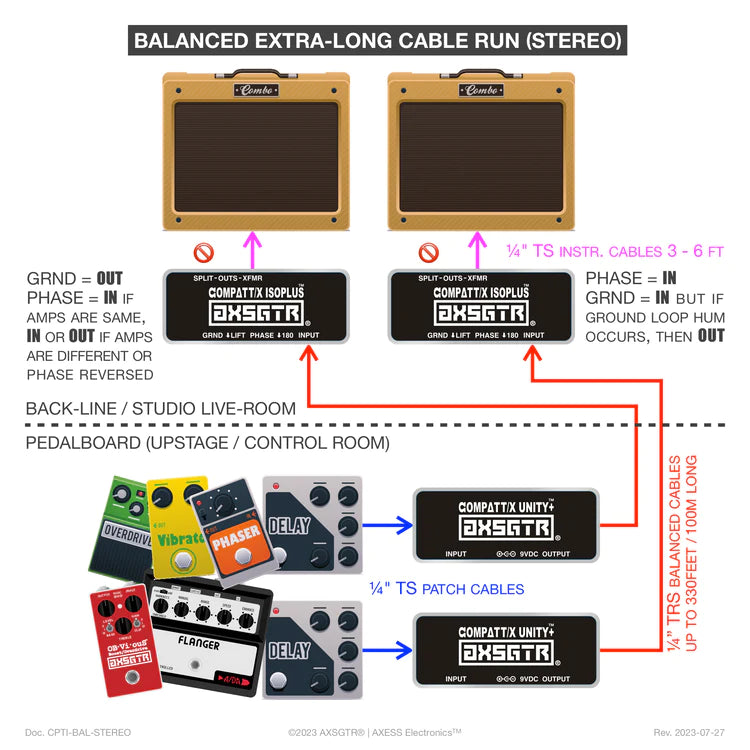

For extra long (up to 330ft./100m) cables between a pedalboard and a backline amp, with greater noise immunity, use a 1/4" TRS balanced cable between the Unity+ and IsoPlus.

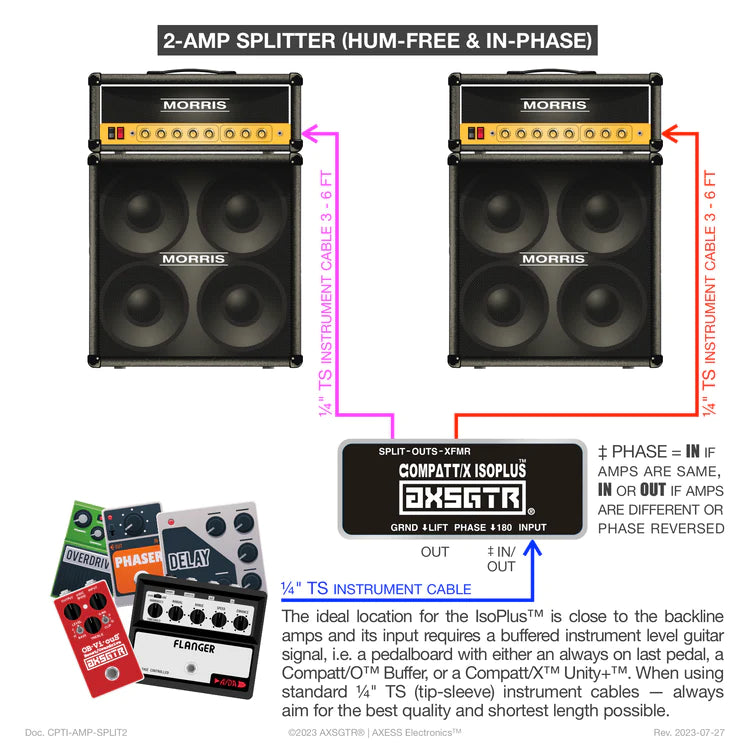

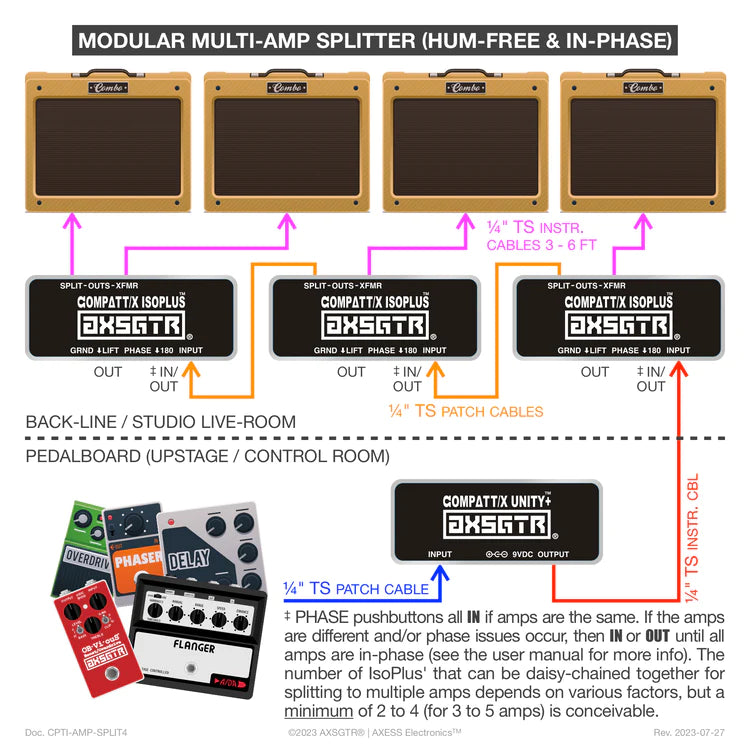

For splitting to multiple† amps — just use more of them, one IsoPlus for each amp. Use standard 1/4" patch cables from the SPLIT of one to the INPUT of the next, and connect the XFMR output jack to the input of each amp. Repeat the daisy-chain for more amps. The unused SPLIT of the final IsoPlus in the daisy-chain can feed the input of one more amp.
- The IsoPlus is a completely passive device and does not require a power supply.
- Housed in a compact; 3.72 x 1.55 x 1.29in. (94.5 x 39.4 x 32.8mm) and rugged #1590A style die-cast aluminum enclosure.
Compatt/X [kom·patta & kom·patto] are the Italian, feminine/masculine noun translations for 'compact'.
Balanced Long-Line and Other Bundles:
Buy 2 bundle includes (2)IsoPlus™
Buy 3+ bundle includes (3)IsoPlus™ or more
TXRX-Mono bundle includes (1)Unity+™ (1)IsoPlus™
TXRX-Stereo bundle includes (2)Unity+™ (2)IsoPlus™
† Multi-Amp Splitter:
The number of IsoPlus' that can be daisy-chained together for splitting to multiple amps depends on various factors, but a minimum of 2 to 4 (for 3 to 5 amps) is conceivable.
